Free Customization Centrifugal Suction Blower Boiler Exhaust Fan ID Blower Induced Draught Fan Industrial Fans Extractor Fan
Package Size 2000.00cm * 2000.00cm * 1000.00cm Package Gross Weight 1000.000kg Explosion-Proof Xfb-250 Series Backward C
|Transport Package||Export Packing|
Packaging & DeliveryPackage Size 2000.00cm * 2000.00cm * 1000.00cm Package Gross Weight 1000.000kg

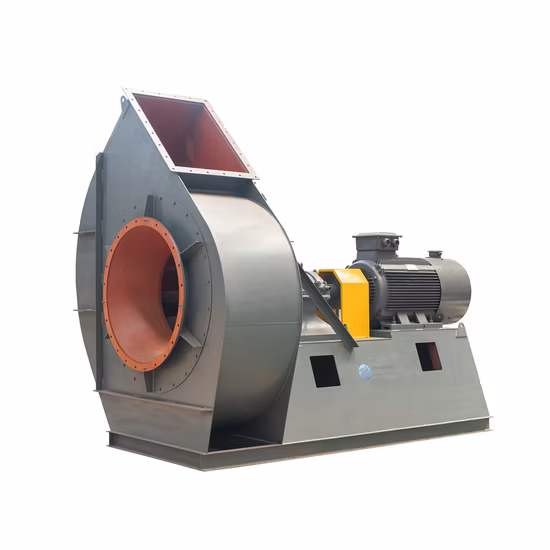

Product DescriptionExplosion-Proof Xfb-250 Series Backward Centrifugal Fan
** XFB series backward centrifugal fan is one of the most successful and efficient centrifugal fans designed in china.
** The connecting type fan is assembled on the same rigid frame of the fan, the drive group and the motor, thus
** The C type fan can be matched with an integral bearing seat, and the bearing is well lubricated and has a high service life . Equipped with water seat , it can work in high temperature for a long time .
** Ctype fans can manufacture non-standard speed to realize nonstandard adjustment of parameters.
** Place of use : widely used in large and medium-sized factories and civil buildings , large squares , power plants , air treatment equipment, hot air circulation equipment.
** Conveying gas : non flammable , explosive and non corrosive gas medium .
** Air dust: gas does not allow sticky substances, dust and hard particles content of not more than 150mg/m3, if used to transport small particles of material, fan impeller life will be shortened.
** Normal temperature : fan normal use temperature is not more than 80 degrees C , when there is a special use problems should contact my company technical department
Generally used for ventilation, process gas transport. Widely used in many industries.
Cement plant, power plant , chemical, Metal smelting, water treatment, De-dusting system, Food, Paper making, industrial gas
Backward centrifugal fan (C type driving) technical parametric table
|Model||Revolution (r/min)||Volume (m3/h)||Full presure (Pa)||Power (KW)||working voltage(V)||hertz|
|315C||1800~3200||850~4600||425~1800||0.55 / 0.75 / 1.1 / 1.5 / 2.2 / 3||220V~380V||50Hz~60Hz|
|355C||1600~3050||1000~4300||500~2050||0.55 / 0.75 / 1.1 / 1.5 / 2.2 / 3 / 4||220V~380V||50Hz~60Hz|
|400C||1300~3000||2000~11100||200~2400||0.55 / 0.75 / 1.1 / 1.5 / 2.2 / 3 / 4 / 5.5||220V~380V||50Hz~60Hz|
|450C||1200~2750||2200~13000||230~2600||0.55 / 0.75 / 1.1 / 1.5 / 2.2 / 3 / 4 / 5.5 / 7.5||220V~380V||50Hz~60Hz|
|500C||1100~2350||3100~15200||230~2250||0.75 / 1.1 / 1.5 / 2.2 / 3 / 4 / 5.5 / 7.5 / 11||220V~380V||50Hz~60Hz|
|560C||1000~2200||4000~19500||280~2550||1.1 / 1.5 / 2.2 / 3 / 4 / 5.5 / 7.5 / 11||220V~380V||50Hz~60Hz|
|600C||800~2240||4237~23722||200~2485||1.1 / 1.5 / 2.2 / 3 / 4 / 5.5 / 7.5 / 11 / 15||220V~380V||50Hz~60Hz|
|630C||900~2000||5100~26500||290~2700||1.5 / 2.2 / 3 / 4 / 5.5 / 7.5 / 11 / 15||220V~380V||50Hz~60Hz|
|710C||800~1800||6000~31100||300~2800||2.2 / 3 / 4 / 5.5 / 7.5 / 11 / 15 / 18.5 / 22||220V~380V||50Hz~60Hz|
|800C||700~1600||6500~35300||320~2800||2.2 / 3 / 5.5 / 7.5 / 11 / 15 / 18.5 / 22||220V~380V||50Hz~60Hz|
|900C||600~1400||10000~49200||270~2800||2.2 / 5.5 / 7.5 / 11 / 15 / 18.5 / 22 / 30||220V~380V||50Hz~60Hz|
|1000C||550~1250||16000~67000||200~2600||4 / 5.5 / 7.5 / 11 / 15 / 18.5 / 22 / 30 / 37||220V~380V||50Hz~60Hz|
|1120C||500~1150||16000~78000||280~2950||4 / 7.5 / 11 / 15 / 18.5 / 22 / 30 / 37 / 45||220V~380V||50Hz~60Hz|
|1250C||450~960||20000~87000||330~2500||5.5 / 7.5 / 11 / 15 / 18.5 / 22 / 30 / 37||220V~380V||50Hz~60Hz|
|1400C||400~860||29000~126000||300~2650||7.5 / 11 / 15 / 18.5 / 22 / 30 / 45 / 55 / 75||220V~380V||50Hz~60Hz|
backward centrifugal fan (C type driving) dimension
AN ANGLE DIAGR
